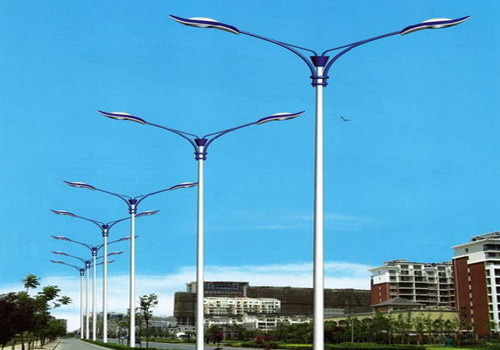

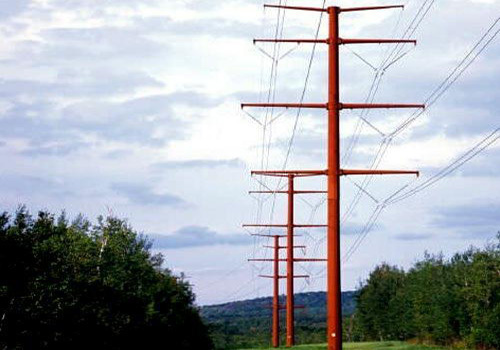

ISO 9001 Certified CompanyIn addition to MS ERW pipes we are also leading manufacturers of Steel Tubular Poles made out of MS pipes as per IS:2713. These poles are used in various electrical works such as power transmission, street light poles and are also used in Sub-stations.
Key Points :
- We manufacture all sizes from SP-l(7m) to SP-80(16m) as per IS:2713
- We have all the necessary machinery required in the process from swaging machine to welding machine and drilling machines installed at our plant.
- All the necessary tests are carried in house by ourtechnical team
- Deflection test, tensile strength test, drop test and dimensional test is carried out by our team before dispatch as per IS:2713
STEEL TUBULAR POLES AS PER 1S:2713 PART I & II - 1980
| DESIGNATION | OVERALL LENGTH | PLANTING DEPTH | LENGTH OF DECTIONS | BOTTOM | MIDDLE | TOP | APPROX WT OF POLE | BREAKING LOAD | LOAD FOR PERMANENT NOT EXCEEDING 13MM | LOAD FOR TEMPORARY DEFLECTION 157.5MM | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| BOTTOM h3 | MIDDLE h2 | TOP h1 | ||||||||||
| (M) | (M) | (M) | (M) | (M) | (MM) | (MM) | (MM) | (KG.) | N(KGF) | N (KGF) | N (KGF) | |
| SP-1 | 7 | 1.25 | 4 | 1.5 | 1.5 | 114.3X3.65 | 88.9X3.25 | 76.1X3.25 | 62 | 2570(262) | 1245(127) | 785(80) |
| SP-2 | 7 | 1.25 | 4 | 1.5 | 1.5 | 114.5X4.50 | 88.9X4.05 | 76.1X3.25 | 73 | 3100(316) | 1510(154) | 941(96) |
| SP-3 | 7 | 1.25 | 4 | 1.5 | 1.5 | 114.5X5.40 | 88.9X4.85 | 76.1X3.25 | 85 | 3630(370) | 1760(180) | 1090(111) |
| SP-4 | 7.5 | 1.25 | 4.5 | 1.5 | 1.5 | 114.3X3.65 | 88.9X3.25 | 76.1X3.25 | 67 | 2350(240) | 1150(117) | 627(64) |
| SP-5 | 7.5 | 1.25 | 4.5 | 1.5 | 1.5 | 114.5X4.50 | 88.9X4.05 | 76.1X3.25 | 79 | 2760(281) | 1340(137) | 745(76) |
| SP-6 | 7.5 | 1.25 | 4.5 | 1.5 | 1.5 | 114.5X5.40 | 88.9X4.85 | 76.1X3.25 | 93 | 3320(339) | 1620(165) | 873(89) |
| SP-7 | 7.5 | 1.25 | 4.5 | 1.5 | 1.5 | 139.7X4.50 | 114.3X3.65 | 88.9X3.25 | 97 | 4330(442) | 2110(215) | 1400(143) |
| SP-8 | 7.5 | 1.25 | 4.5 | 1.5 | 1.5 | 139.7X4.85 | 114.3X3.65 | 88.9X3.25 | 103 | 4630(472) | 2250(229) | 1480(151) |
| SP-9 | 7.5 | 1.25 | 4.5 | 1.5 | 1.5 | 139.7X5.40 | 114.3X3.65 | 88.9X3.25 | 110 | 5100(520) | 2480(253) | 1600(163) |
| SP-10 | 8 | 1.50 | 4.5 | 1.75 | 1.75 | 114.3X3.65 | 88.9X3.25 | 76.1X3.25 | 70 | 2260(230) | 1100(112) | 520(53) |
| SP-11 | 8 | 1.50 | 4.5 | 1.75 | 1.75 | 114.5X4.50 | 88.9X4.05 | 76.1X3.25 | 83 | 2730(278) | 1320(135) | 618(63) |
| SP-12 | 8 | 1.50 | 4.5 | 1.75 | 1.75 | 114.5X5.40 | 88.9X4.85 | 76.1X3.25 | 97 | 3190(325) | 1550(158) | 725(74) |
| SP-13 | 8 | 1.50 | 4.5 | 1.75 | 1.75 | 139.7X4.50 | 114.3X3.65 | 88.9X3.25 | 101 | 4160(424) | 2020(206) | 1180(120) |
| SP-14 | 8 | 1.50 | 4.5 | 1.75 | 1.75 | 139.7X4.85 | 114.3X4.50 | 88.9X3.25 | 111 | 4440(453) | 2160(220) | 1280(131) |
| SP-15 | 8 | 1.50 | 4.5 | 1.75 | 1.75 | 139.7X5.40 | 114.3X4.50 | 88.9X3.25 | 119 | 4890(499) | 2380(243) | 1380(140) |
| SP-16 | 8.5 | 1.50 | 5 | 1.75 | 1.75 | 114.3X3.65 | 88.9X3.25 | 76.1X3.25 | 75 | 2090(213) | 1020(104) | 432(40) |
| SP-17 | 8.5 | 1.50 | 5 | 1.75 | 1.75 | 114.5X4.50 | 88.9X4.05 | 76.1X3.25 | 89 | 2520(257) | 1230(125) | 510(52) |
| SP-18 | 8.5 | 1.50 | 5 | 1.75 | 1.75 | 114.5X5.40 | 88.9X4.85 | 76.1X3.25 | 104 | 2950(301) | 1430(146) | 598(61) |
| SP-19 | 8.5 | 1.50 | 5 | 1.75 | 1.75 | 139.7X4.50 | 114.3X3.65 | 88.9X3.25 | 109 | 3844(392) | 1800(191) | 961(98) |
| SP-20 | 8.5 | 1.50 | 5 | 1.75 | 1.75 | 139.7X4.85 | 114.3X3.65 | 88.9X3.25 | 115 | 4110(419) | 2000(204) | 1010(103) |
| SP-21 | 8.5 | 1.50 | 5 | 1.75 | 1.75 | 139.7X5.40 | 114.3X4.50 | 88.9X3.25 | 129 | 4530(462) | 2210(225) | 1130(115) |
| SP-22 | 8.5 | 1.50 | 5 | 1.75 | 1.75 | 165.1X4.50 | 139.7X4.50 | 114.3X3.65 | 141 | 5450(556) | 2650(270) | 1730(176) |
| SP-23 | 8.5 | 1.50 | 5 | 1.75 | 1.75 | 165.1X4.85 | 139.7X4.50 | 114.3X3.65 | 148 | 5850(596) | 2840(290) | 1820(186) |
| SP-24 | 8.5 | 1.50 | 5 | 1.75 | 1.75 | 165.1X5.40 | 139.7X4.50 | 114.3X3.65 | 158 | 6450(658) | 3140(320) | 1970(201) |
| SP-25 | 9 | 1.50 | 5 | 2 | 2 | 114.3X3.65 | 88.9X3.25 | 76.1X3.25 | 78 | 1940(198) | 941(96) | 333(34) |
| SP-26 | 9 | 1.50 | 5 | 2 | 2 | 114.5X4.50 | 88.9X4.05 | 76.1X3.25 | 92 | 2340(239) | 1140(116) | 402(41) |
| SP-27 | 9 | 1.50 | 5 | 2 | 2 | 114.5X5.40 | 88.9X4.85 | 76.1X3.25 | 108 | 2750(280) | 1330(136) | 461(47) |
| SP-28 | 9 | 1.50 | 5 | 2 | 2 | 139.7X4.50 | 114.3X3.65 | 88.9X3.25 | 113 | 3580(365) | 1740(177) | 745(76) |
| SP-29 | 9 | 1.50 | 5 | 2 | 2 | 139.7X4.85 | 114.3X4.50 | 88.9X3.25 | 125 | 3820(390) | 1860(190) | 814(83) |
| SP-30 | 9 | 1.50 | 5 | 2 | 2 | 139.7X5.40 | 114.3X4.50 | 88.9X3.25 | 133 | 4220(430) | 2050(209) | 882(90) |
| SP-31 | 9 | 1.50 | 5 | 2 | 2 | 165.1X4.50 | 139.7X4.50 | 114.3X3.65 | 147 | 5070(517) | 2460(251) | 1360(139) |
| SP-32 | 9 | 1.50 | 5 | 2 | 2 | 165.1X4.85 | 139.7X4.50 | 114.3X3.65 | 154 | 5430(554) | 2640(269) | 1430(146) |
| SP-33 | 9 | 1.50 | 5 | 2 | 2 | 165.1X5.40 | 139.7X4.50 | 114.3X3.65 | 164 | 6000(612) | 2910(297) | 1540(157) |
| SP-34 | 9.5 | 1.80 | 5 | 2.25 | 2.25 | 139.7X4.50 | 114.3X4.50 | 88.9X3.25 | 122 | 3630(370) | 1760(180) | 745(76) |
| SP-35 | 9.5 | 1.80 | 5 | 2.25 | 2.25 | 139.7X4.85 | 114.3X4.50 | 88.9X3.25 | 129 | 3880(396) | 1880(192) | 784(80) |
| SP-36 | 9.5 | 1.80 | 5 | 2.25 | 2.25 | 139.7X5.40 | 114.3X4.50 | 88.9X3.25 | 137 | 4280(436) | 2080(212) | 833(85) |
| SP-37 | 9.5 | 1.80 | 5 | 2.25 | 2.25 | 165.1X4.50 | 139.7X4.50 | 114.3X3.65 | 153 | 5150(525) | 2500(255) | 1300(133) |
| SP-38 | 9.5 | 1.80 | 5 | 2.25 | 2.25 | 165.1X4.85 | 139.7X4.50 | 114.3X3.65 | 160 | 5510(562) | 2680(273) | 1370(140) |
| SP-39 | 9.5 | 1.80 | 5 | 2.25 | 2.25 | 165.1X5.40 | 139.7X4.50 | 114.3X3.65 | 170 | 6090(621) | 2960(302) | 1480(151) |
| SP-40 | 10 | 1.80 | 5.2 | 2.4 | 2.4 | 139.7X4.50 | 114.3X4.50 | 88.9X3.25 | 128 | 3390(346) | 1650(168) | 608(62) |
STEEL TUBULAR POLES AS PER 1S:2713 PART I & II -1980
| DESIGNATION | OVERALL LENGTH | PLANTING DEPTH | LENGTH OF DECTIONS | BOTTOM | MIDDLE | TOP | APPROX WT OF POLE | BREAKING LOAD | LOAD FOR PERMANENT NOT EXCEEDING 13MM | LOAD FOR TEMPORARY DEFLECTION 157.5MM | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| BOTTOM h3 | MIDDLE h2 | TOP h1 | ||||||||||
| (M) | (M) | (M) | (M) | (M) | (MM) | (MM) | (MM) | (KG.) | N(KGF) | N (KGF) | N (KGF) | |
| SP-41 | 10 | 1.80 | 5.2 | 2.4 | 2.4 | 139.7X4.85 | 114.3X4.50 | 88.9X3.25 | 135 | 3630(370) | 1760(180) | 637(65) |
| SP-42 | 10 | 1.80 | 5.2 | 2.4 | 2.4 | 139.7X5.40 | 114.3X4.50 | 88.9X3.25 | 144 | 3990(407) | 1940(198) | 677(69) |
| SP-43 | 10 | 1.80 | 5.2 | 2.4 | 2.4 | 165.1X4.50 | 139.7X4.50 | 114.3X3.65 | 160 | 4810(490) | 2330(238) | 1060(108) |
| SP-44 | 10 | 1.80 | 5.2 | 2.4 | 2.4 | 165.1X4.85 | 139.7X4.50 | 114.3X3.65 | 168 | 5150(525) | 2500(255) | 1120(114) |
| SP-45 | 10 | 1.80 | 5.2 | 2.4 | 2.4 | 165.1X5.40 | 139.7X4.50 | 114.3X3.65 | 178 | 5690(580) | 2760(282) | 1200(122) |
| SP-46 | 10 | 1.80 | 5.2 | 2.4 | 2.4 | 193.7X4.85 | 165.1X4.50 | 139.7X4.50 | 208 | 7210(735) | 3500(357) | 1850(189) |
| SP-47 | 10 | 1.80 | 5.2 | 2.4 | 2.4 | 193.7X5.40 | 165.1X4.50 | 139.7X4.50 | 221 | 7910(807) | 3840(392) | 1990(203) |
| SP-48 | 10 | 1.80 | 5.2 | 2.4 | 2.4 | 193.7X5.90 | 165.1X4.50 | 139.7X4.50 | 233 | 8620(879) | 4190(427) | 2110(215) |
| SP-49 | 11 | 1.80 | 5.6 | 2.7 | 2.7 | 139.7X4.85 | 114.3X4.50 | 88.9X3.25 | 140 | 3000(306) | 1460(149) | 412(42) |
| SP-50 | 11 | 1.80 | 5.6 | 2.7 | 2.7 | 139.7X5.40 | 114.3X4.50 | 88.9X3.25 | 147 | 3210(327) | 1560(159) | 431(44) |
| SP-51 | 11 | 1.80 | 5.6 | 2.7 | 2.7 | 139.7X5.40 | 114.3X5.40 | 88.9X3.25 | 164 | 3530(360) | 1720(175) | 480(49) |
| SP-52 | 11 | 1.80 | 5.6 | 2.7 | 2.7 | 165.1X4.50 | 139.7X4.50 | 114.3X3.65 | 175 | 4250(433) | 2060(210) | 726(74) |
| SP-53 | 11 | 1.80 | 5.6 | 2.7 | 2.7 | 165.1X4.85 | 139.7X4.50 | 114.3X3.65 | 183 | 4550(464) | 2220(226) | 765(78) |
| SP-54 | 11 | 1.80 | 5.6 | 2.7 | 2.7 | 165.1X5.40 | 139.7X4.50 | 114.3X3.65 | 194 | 5030(513) | 2440(249) | 814(83) |
| SP-55 | 11 | 1.80 | 5.6 | 2.7 | 2.7 | 193.7X4.85 | 165.1X4.50 | 139.7X4.50 | 227 | 6370(650) | 3100(316) | 1270(130) |
| SP-56 | 11 | 1.80 | 5.6 | 2.7 | 2.7 | 193.7X5.40 | 165.1X4.50 | 139.7X4.50 | 241 | 6990(713) | 3400(347) | 1370(140) |
| SP-57 | 11 | 1.80 | 5.6 | 2.7 | 2.7 | 193.7X5.90 | 165.1X4.85 | 139.7X4.50 | 256 | 7620(777) | 3710(378) | 1470(150) |
| SP-58 | 12 | 2.00 | 5.8 | 3.1 | 3.1 | 65.1X4.50 | 139.7X4.50 | 114.3X3.65 | 186 | 3880(396) | 1880(192) | 539(55) |
| SP-59 | 12 | 2.00 | 5.8 | 3.1 | 3.1 | 165.1X4.85 | 139.7X4.50 | 114.3X3.65 | 197 | 4160(424) | 2020(206) | 569(58) |
| SP-60 | 12 | 2.00 | 5.8 | 3.1 | 3.1 | 165.1X5.40 | 139.7X4.50 | 114.3X3.65 | 208 | 4600(469) | 2240(228) | 598(61) |
| SP-61 | 12 | 2.00 | 5.8 | 3.1 | 3.1 | 193.7X4.85 | 165.1X4.50 | 139.7X4.50 | 245 | 5820(594) | 2830(289) | 951(97) |
| SP-62 | 12 | 2.00 | 5.8 | 3.1 | 3.1 | 193.7X5.40 | 165.1X4.50 | 139.7X4.50 | 259 | 6390(652) | 3110(317) | 1010(103) |
| SP-63 | 12 | 2.00 | 5.8 | 3.1 | 3.1 | 193.7X5.90 | 165.1X4.85 | 139.7X4.50 | 277 | 6960(710) | 3390(345) | 1090(111) |
| SP-64 | 12 | 2.00 | 5.8 | 3.1 | 3.1 | 219.1X4.85 | 193.7X4.85 | 165.1X4.50 | 292 | 7490(764) | 3640(371) | 1460(149) |
| SP-65 | 12 | 2.00 | 5.8 | 3.1 | 3.1 | 219.1X5.60 | 193.7X4.85 | 165.1X4.50 | 313 | 8530(871) | 4150(423) | 1610(164) |
| SP-66 | 12 | 2.00 | 5.8 | 3.1 | 3.1 | 219.1X5.90 | 193.7X4.85 | 165.1X4.50 | 322 | 8980(916) | 4360(445) | 1660(169) |
| SP-67 | 13 | 2.00 | 5.8 | 3.6 | 3.6 | 193.7X4.85 | 165.1X4.50 | 139.7X4.50 | 261 | 5270(537) | 2560(261) | 677(69) |
| SP-68 | 13 | 2.00 | 5.8 | 3.6 | 3.6 | 193.7X5.40 | 165.1X4.85 | 139.7X4.50 | 281 | 5790(590) | 2810(287) | 735(75) |
| SP-69 | 13 | 2.00 | 5.8 | 3.6 | 3.6 | 193.7X5.90 | 165.1X5.40 | 139.7X4.50 | 302 | 6300(642) | 3060(312) | 794(81) |
| SP-70 | 13 | 2.00 | 5.8 | 3.6 | 3.6 | 219.1X4.85 | 193.7X4.85 | 165.1X4.50 | 312 | 6780(691) | 3300(336) | 1060(108) |
| SP-71 | 13 | 2.00 | 5.8 | 3.6 | 3.6 | 219.1X5.60 | 193.7X4.85 | 165.1X4.50 | 333 | 7720(787) | 3750(382) | 1160(118) |
| SP-72 | 13 | 2.00 | 5.8 | 3.6 | 3.6 | 219.1X5.90 | 193.7X4.85 | 165.1X4.50 | 343 | 8120(828) | 3940(402) | 1190(121) |
| SP-73 | 14.5 | 2.00 | 6.5 | 4 | 4 | 193.7X5.40 | 165.1X5.40 | 139.7X4.50 | 312 | 5050(515) | 2450(250) | 500(51) |
| SP-74 | 14.5 | 2.00 | 6.5 | 4 | 4 | 193.7X5.90 | 193.7X4.85 | 139.7X4.50 | 336 | 5500(561) | 2680(273) | 539(55) |
| SP-75 | 14.5 | 2.00 | 6.5 | 4 | 4 | 219.1X5.60 | 193.7X4.85 | 165.1X4.50 | 370 | 6750(688) | 3780(334) | 775(79) |
| SP-76 | 14.5 | 2.00 | 6.5 | 4 | 4 | 219.1X5.90 | 193.7X4.85 | 165.1X4.50 | 380 | 7100(724) | 3450(352) | 794(81) |
| SP-77 | 16 | 2.30 | 7 | 4.5 | 4.5 | 193.7X5.40 | 165.1X5.40 | 139.7X4.50 | 341 | 4590(468) | 2230(227) | 363(37) |
| SP-78 | 16 | 2.30 | 7 | 4.5 | 4.5 | 193.7X5.90 | 193.7X4.85 | 139.7X4.50 | 367 | 5000(510) | 2430(248) | 392(40) |
| SP-79 | 16 | 2.30 | 7 | 4.5 | 4.5 | 219.1X5.60 | 193.7X4.85 | 165.1X4.50 | 405 | 6130(625) | 2980(304) | 569(58) |
| SP-80 | 16 | 2.30 | 7 | 4.5 | 4.5 | 219.1X5.90 | 193.7X4.85 | 165.1X4.50 | 416 | 6440(657) | 3130(319) | 588(60) |
